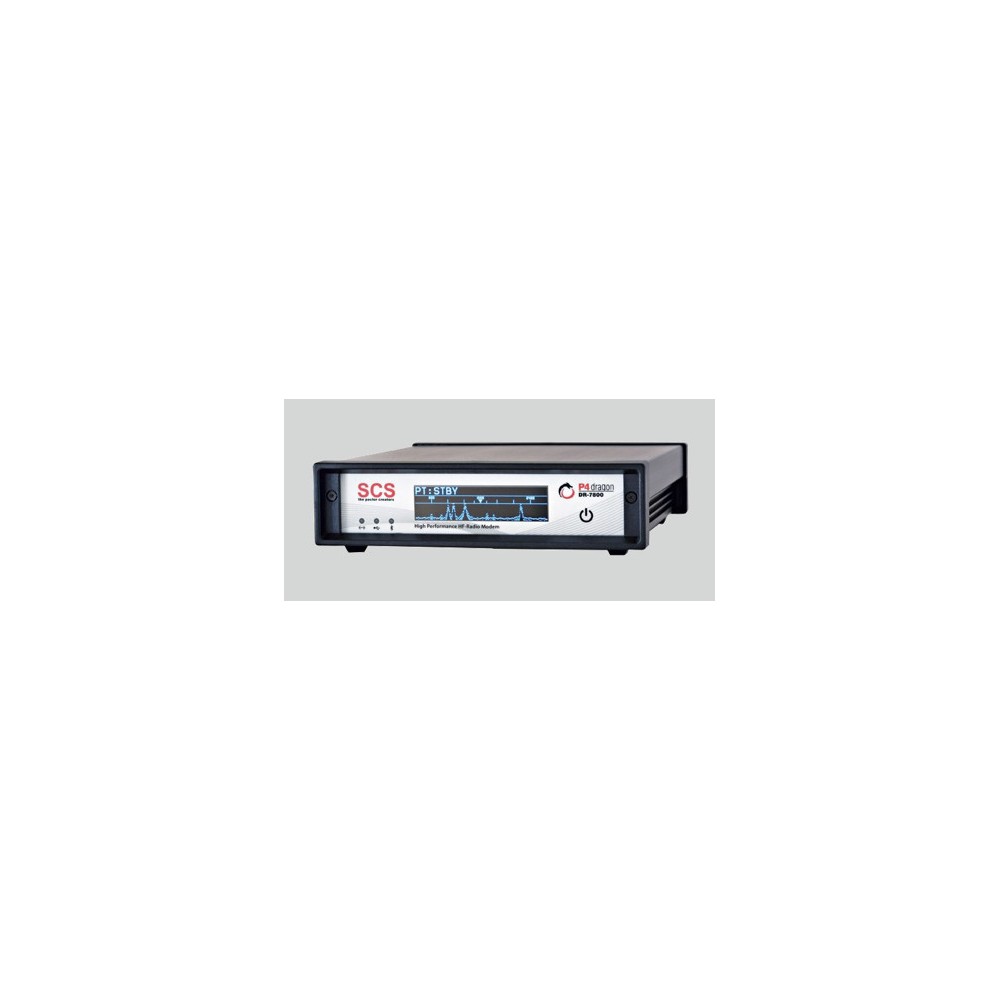

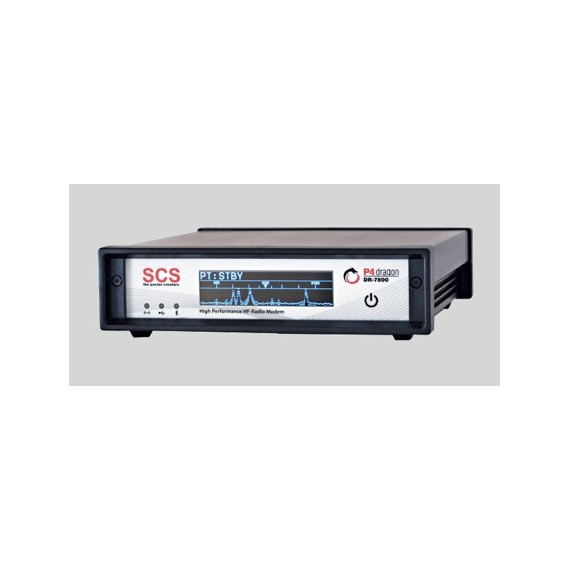

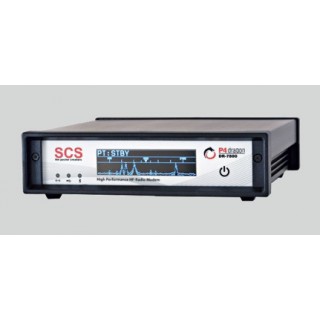

SCS - DR7800BT

The DR-7800 is ideal for the new Pactor 4 transfer method and with this unbeatable fast and robust shortwave data transfer: email delivery is almost like home and from anywhere in the world.

The DR-7800 is a software compatible with PTC-II, so that existing software (airmail, RMS Express, Alpha, etc.) can be used for PACTOR.
The elegant design that is very easy to read and OLED display and easy upgrade (free).


    Fashion : PACTOR 1, PACTOR 2, PACTOR-3, 4-PACTOR, Weather Fax (Reception), GPS Decoder

    Processor: Freescale quad-core DSP, 6400 MIPS, 64-bit

    Connections: USB, Bluetooth, (Opsjoner:  Ethernet, USB master), GPS (RS232 and TTL), 2 x radios audio / PTT ( "Main", "Aux", PTC II compatible or symmetrically configurable, opt. dual ports operation), 1 x radio remote control (all common transceiver types), microphone, output speaker (2 W)

    Sound level / impedanser: Inputs: max. 5.5 V pp, 15 kΩ, outputs: max. 9 V pp, 300 Ω

    Display: 256 x 64 pixels, OLED, blue, high contrast, excellent readability, no viewing angle, spectral display and much, much more.

    Power supply: 10 ... 28 V, 400 mA (max at 10 V input voltage)

    Weight / Dimensions: 770 g, 172 x 43 x 205 mm (width x height x depth)
