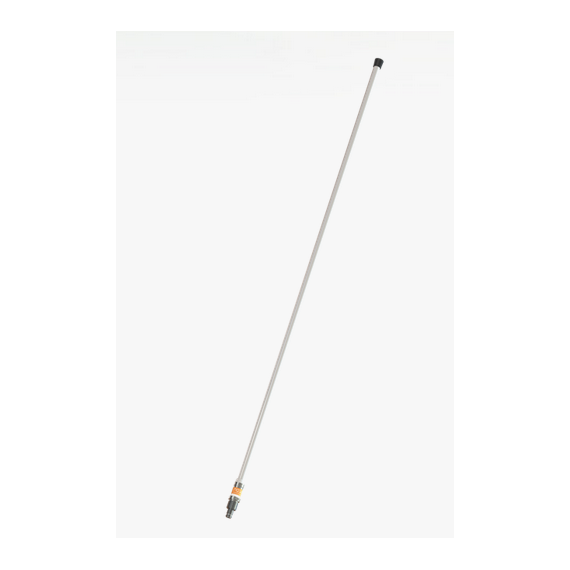

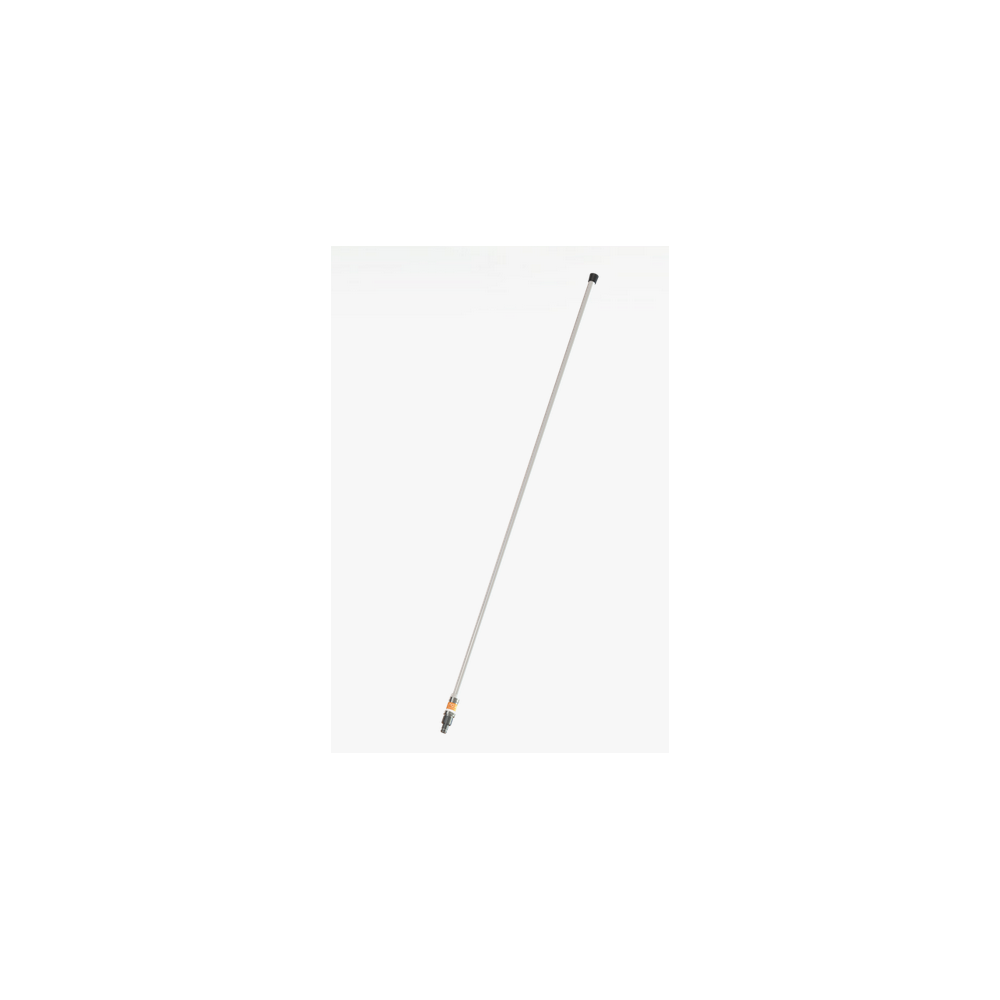

Antenne til maritimet bruk
halvbølge design, jordplanfri.
Lengde: ca 1440mm
egenvekt: 450g
Kobling: N-connector
frekvens bånd : 133-150Mhz
maks vind 55m/s
maks effekt 100w
SWR <1.5
Impedanse 50ohm
UPS UPS fot må kjøpes separat.
Mechanical specifications
Color
White and chrome
Height
Approx. 1440 mm
Weight
450 g
Mounting
On 1" threaded pole (G1"-11 thread) with Revolving Nut Kit or on optionally brackets
Mounting Place
On mast or deck
Materials
PU-painted glasfibre, copper, PTFE, PE and chrome plated solid brass
Survival Wind Speed
55 m/s (125 mph)
Operating Temperature
-55C to +70C (IEC 60068-2-1, IEC 60068-2-2)
Connector
N-female
Cable
No cable supplied
Ingress Protection
IP66
Vibration
IEC 60068-2-6, IEC 60068-2-64
Serial no.
On product label
