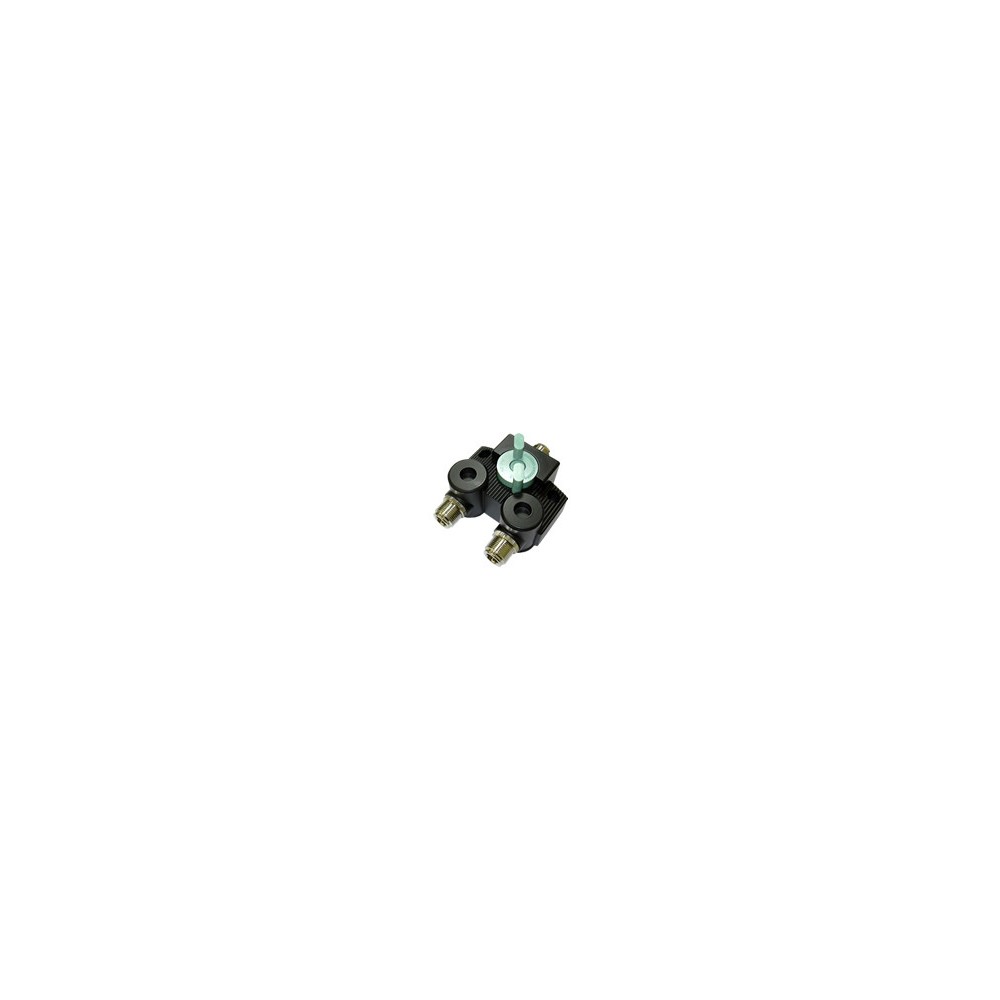

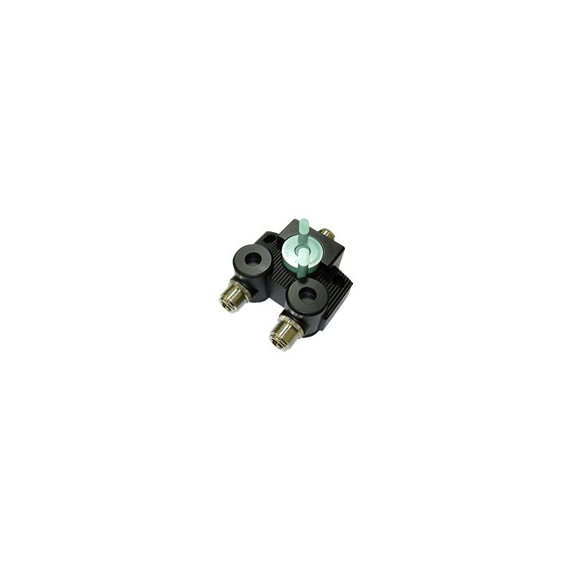

Diamond - CX-210N Antennevelger

N-Connector

Les merShow less
kr 824.00
På lager 4 Enheter
100% secure payments
Merke:
Beskrivelse

Dimensions:71Wx57Hx42Dmm / Weight:440g
Frequency range:DC to 3000MHz
Impedance:50ohms / Connector:N-J
VSWR:Less than 1.05:1(DC to 500MHz),less than 1.1:1(500 to 1000MHz),less than 1.15:1(1000 to 2000MHz),less than 1.2:1(2000 to 3000MHz)
Insertion loss:Less than 0.05dB(DC to 500MHz),less than 0.1dB(500 to 1000MHz),less than 0.15dB(1000 to 2000MHz),less than 0.2dB(2000 to 3000MHz)
Isolation:More than 70dB(DC to 200MHz),more than 60dB(200 to 1000MHz),morDimensions:71Wx57Hx42Dmm / Weight:440g
Frequency range:DC to 3000MHz
Impedance:50ohms / Connector:N-J
VSWR:Less than 1.05:1(DC to 500MHz),less than 1.1:1(500 to 1000MHz),less than 1.15:1(1000 to 2000MHz),less than 1.2:1(2000 to 3000MHz)
Insertion loss:Less than 0.05dB(DC to 500MHz),less than 0.1dB(500 to 1000MHz),less than 0.15dB(1000 to 2000MHz),less than 0.2dB(2000 to 3000MHz)
Isolation:More than 70dB(DC to 200MHz),more than 60dB(200 to 1000MHz),more than 55dB (1000 to 2000MHz),more than 50dB(2000 to 3000MHz)
Max.power rating:1.5KWe than 55dB (1000 to 2000MHz),more than 50dB(2000 to 3000MHz)
Max.power rating:1.5KW
