PNI HP-62 Tilbehørspakke med batteri, ladeplugg og antenne
Specifications
LEVERES MED "Disaster-Radio Firmware.
MCU Frekvens: |
ESP32 868MHz |
Flash | 4MB |
Serial Chip | CH9102 |
Wireless protocol | Wi-Fi + Bluetooth 4.2 |
Support | TF card slot |
Onboard functions | Reset \ Power switch |
Antenna |
3D WiFi Antenna [Use by default] (Support WiFi IPEX external antenna, but you need to jump resistance) |
Power Supply |
Support USB Micro / Li-Po Battery Dual Power Supply |
Note : Pay attention to the OLED when opening the box.
Long Range Low Power LoRa Transceiver
- High sensitivity: -i48dBm
- Transceive rate: 300 kbps
- Optional Hardware
- Version: SX1278[868Mhz]
Til LoRa32 V2.1_1.6 finnes det flere spennede firmware som kan blandt annet :
-

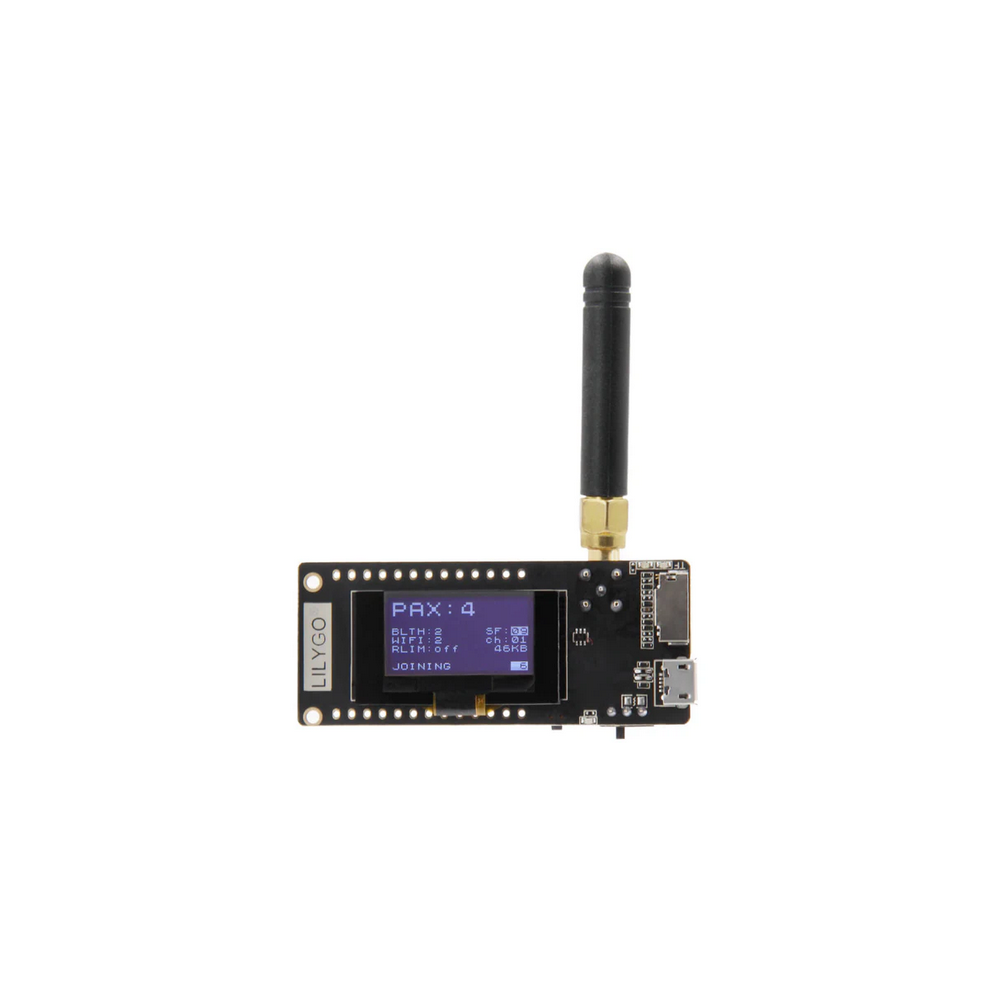

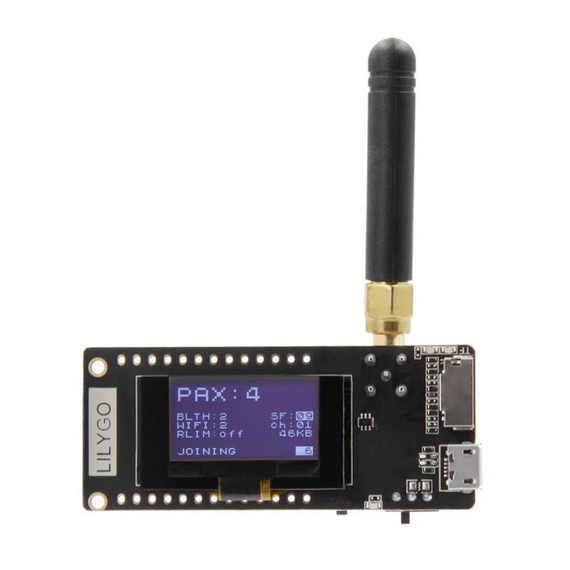

Paxcounter is an ESP32 MCU-based program for metering passenger flows in realtime. It counts how many mobile devices are around. This gives an estimation how many people are around.
-
Paxcounter detects Wifi and Bluetooth signals in the air, focusing on mobile devices by evaluating their MAC adresses.
-
Intention of this project is to do this without intrusion in privacy: You don't need to track people owned devices, if you just want to count them.
-
Paxcounter does not persistenly store MAC adresses and does no kind of fingerprinting the scanned devices.
-
Data can either be be stored on a local SD-card, transferred to cloud using LoRa WAN network or MQTT over TCP/IP, or transmitted to a local host using serial (SPI) interface.
- Disaster.radio is an off-grid, solar-powered, long-range mesh network built on free, open source software and affordable hardware.
- Designed to be open, distributed, and decentralized, disaster.radio is currently in the prototype/development phase.
Firmware kan lastes ned her :
https://github.com/LilyGO/ESP32-Paxcounter
ESP32-Paxcounter
TTGO-LoRa-Series
Paxcounter Testing:

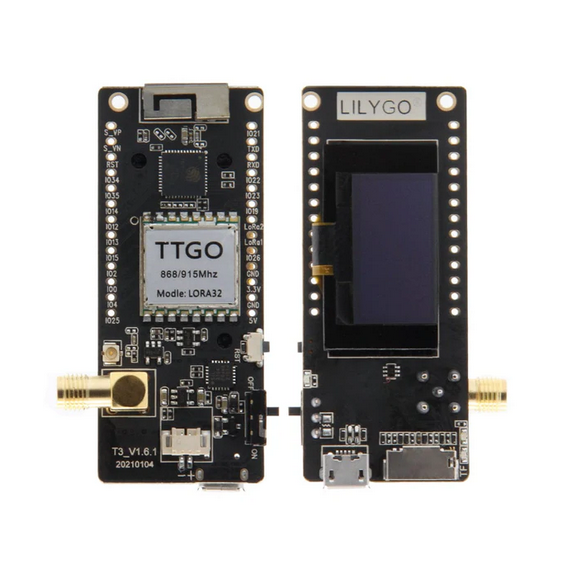

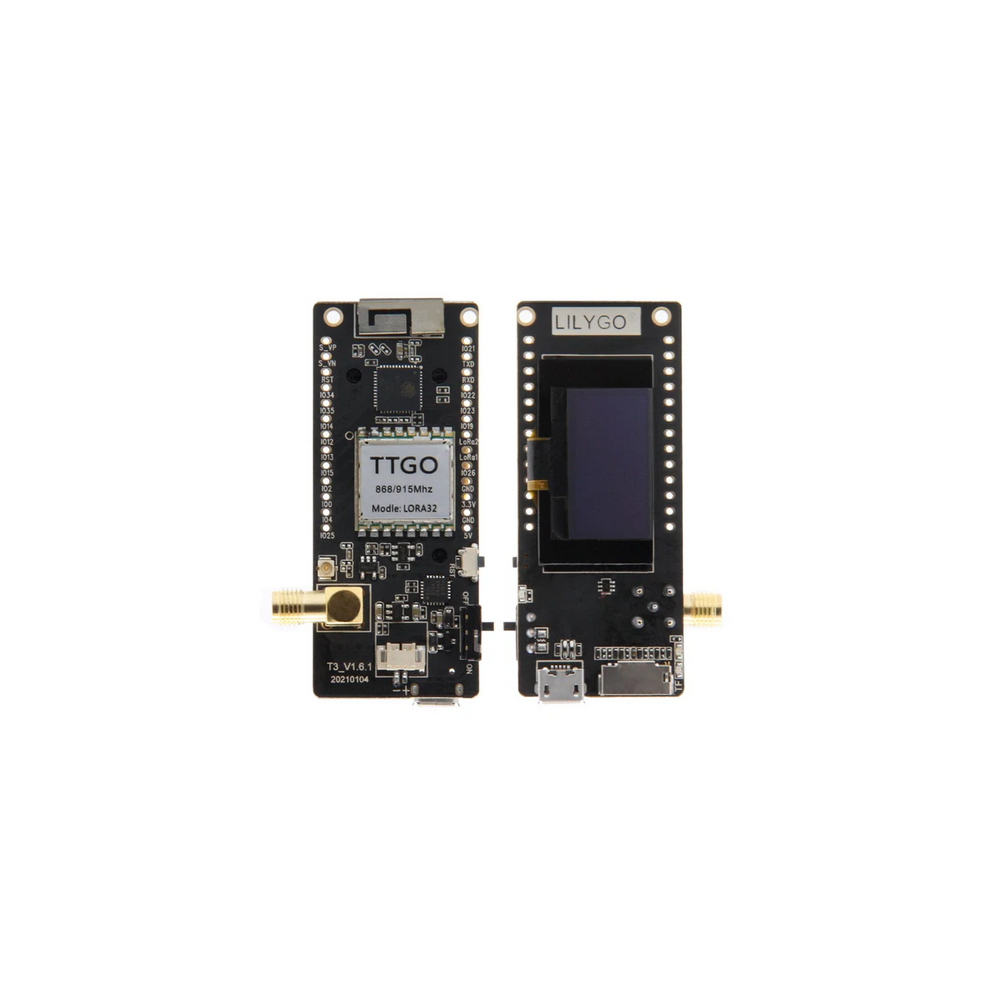

LoRa32 V2.1_1.6 Disaster-Radio
https://disaster.radio/
https://github.com/sudomesh/disaster-radio
https://github.com/sudomesh/disaster-radio/releases/tag/0.2.0
1. Size
2. Pin Diagram
