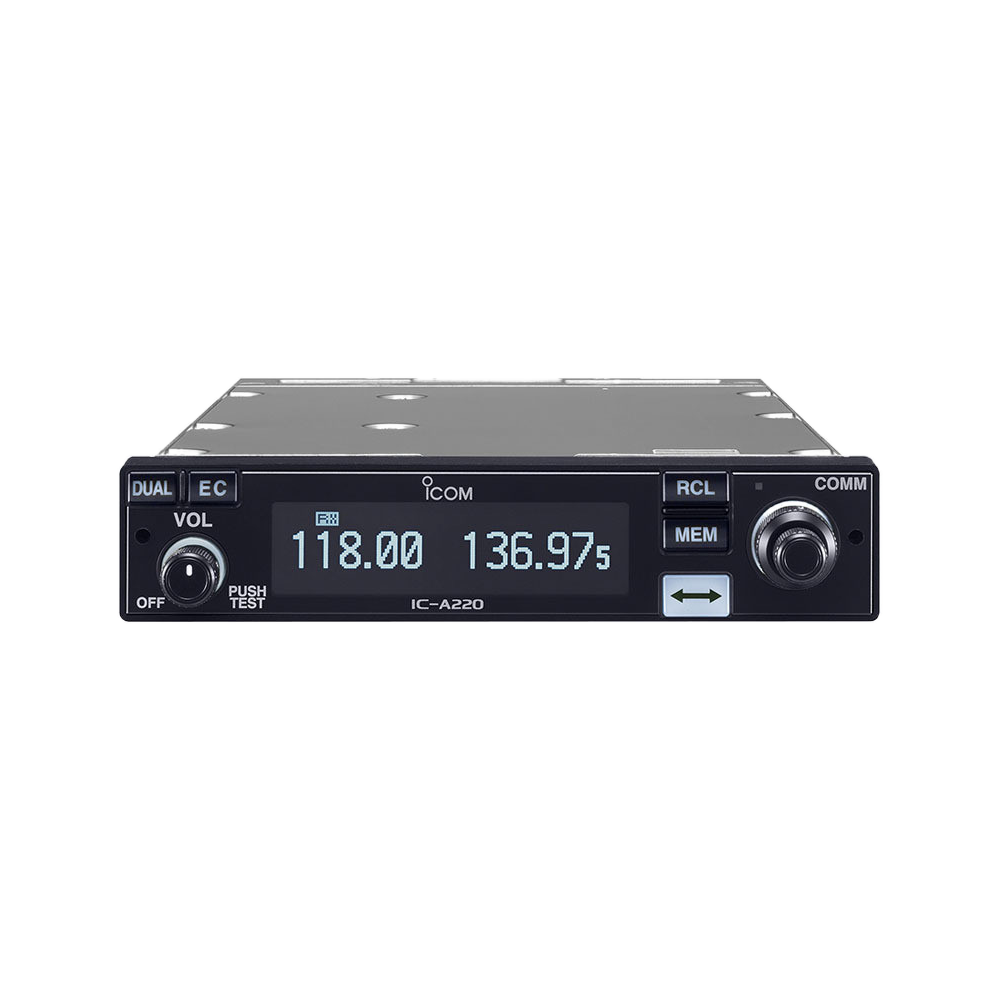

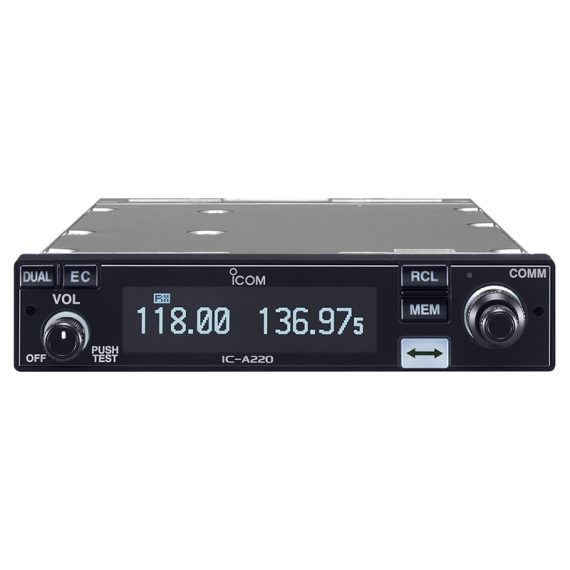

Icom IC-A220E (TSO Version) BESTILLINGSVARE

The OLED (Organic Light Emitting Diode) emits light from itself, so a display backlight is not required. It provides higher contrast, wider viewing angle of almost 180 degrees and faster response time than a conventional LCD. The IC-A220’s display has a wide active area, operating frequencies’ characters can be maximized in the display, while operating status can be shown on both top and bottom of the display. The IC-A220 has large switch buttons on the front panel. The most frequently used FLIP-FLOP (Frequency exchange) switch button is designed large enough to be pushed with ease. All switch buttons and knobs are illuminated with pure-white backlighting which are the same color as the OLED display.
  The IC-A220 TSO version can be used as a primary VHF radio in general aviation (part 23) aircraft.The IC-A220 TSO version is also accepted as an ETSO radio under the TSO/ETSO reciprocal acceptance policy. The squelch sensitivity is automatically adjusted in accordance with the noise level to eliminate annoying background noise and unwanted signals. The auto and manual squelch including squelch level can be quickly accessed with the Volume knob. The squelch test function temporarily opens the squelch and allows you to monitor signals.
  The auto dimmer function sets display and key backlighting brightness. The IC-A220’s high sensitivity light sensor covers a wide illumination range. By connecting to an external dimmer control system on the aircraft, the IC-A220’s dimmer function can be linked with the aircraft dimmer level. The external dimmer control can be used on either 13.8 V or 27.5 V electrical systems. The IC-A220 has a built-in voice activated intercom function allowing the pilot to talk with the copilot via the headset. The IC-A220 has adjustable audio level and squelch control functions. The IC-A220 has 20 memory channels and 20 history memory channels respectively. Often used memory channels can be instantly recalled. Group memory channels are organized into 10 memory channels by 5 groups (total 50 channels). Weather channel scanning function searches for weather channel signals. The IC-A220 allows switching between 8.33 kHz and 25 kHz frequency steps in the menu mode. You can remotely control the FLIP-FLOP (frequency exchange), intercom and recall switches via the rear panel connector. As the TSO specifications require, the radio continues to work with the reduced power supply voltage. To improve operability, menu items are divided into two modes, a settings menu and a configuration menu. Seldom-changed settings can be set in the configuration menu, while normal settings can be made in the settings menu.

·         Dualwatch and priority watch functions
·         One touch access to 121.5 MHz emergency frequency
·         Both 13.8 V and 27.5 V electrical systems compatible
·         Side tone function for monitoring your voice with a headset
·         ANL (Automatic noise limiter) function reduces pulse type noise
·         D-SUB 25-pin connector and MIL-Spec M39029/63-368 compliant socket pins
          Slim 33 mm (1.3 inch) height can be installed in a limited panel space
