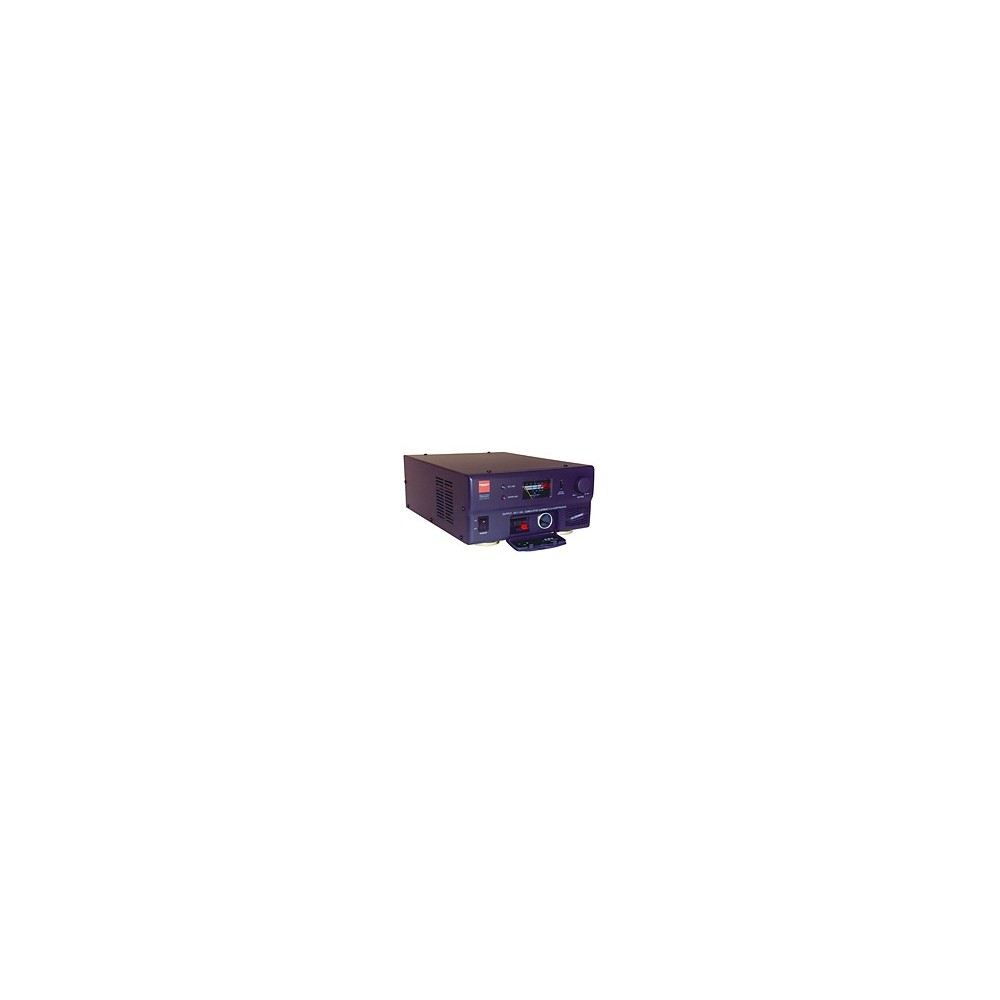

Diamond - GZV6000 (B-vare)

• Size: 8.25" x 4.5" x 16"
• Weight: 12.8 lbs.
• 60 Amp Continuous Rating, 100% Duty Cycle
• Variable Voltage Control 1-15 VDC
• Voltage Control Knob has center detent at 13.5 VDC
• Overload & short-circuit protection with Current Foldback at approximately 62 Amp
• Over Temperature Protection; variable speed fan automatically controlled for quiet operation
• Meter Selector allows monitoring of voltage & current
• Access to front panel DC terminals and cigarette lighter jack; standard 60A terminals on rear panel
• Circuitry yields high RFI protection from external sources
• AC line filter for EMI protection
• Standard 3-wire heavy duty line cord
• Power Indicator & Overload Indicator
• Accepts 100-240 VAC ± 20% 50-60 cps
• Ripple & Noise less than 8 mV r.m.s.
